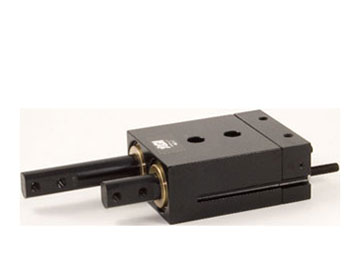

AGE-1 Feed Escapement – Built-in Air Cylinder
Features & Benefits
- Compact, Long Stroke Escapements made for separating and isolating individual parts from tracks, vibratory feeders or conveyors.
- Internal sequencing and cross porting make sure both rods are extended before either rod can retract, ensuring positive part feeding.
- Easy part jam clearing due to internal back pressure cross port design, this allows both rods to be retracted with the air off.
- Piston seals are U-CUP type for long service life.
- Hall effect sensors are available to monitor stroke position at any point in the stroke.
- Adjustable stroke on retraction.
PRODUCT SPECIFICATIONS
Design: Double Acting, Internal Sequencing
Stroke: 1 in 25 mm
Option: Adjustable Stroke
Thrust Force: @80 psi [5.5 BAR]
Extend Force: 18 lb [80 N]
Retract Force: 10 lb [45 N]
Time: .35 Sec [.35 sec]
Pressure Range:
Low/High 20-120 PSI [1.4-8 BAR]
Temperature Range:
Low/High -20°/180°F [-28°/80°C]
Side Play: ± .002 in ± 0.06 mm

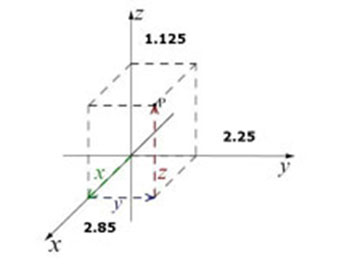

Loading Capacity: Static – Dynamic
Max Moment Mx
50 lbs – 5 lbs
[6 Nm] – [0.6 Nm]
Max Moment My
50 lbs – 5 lbs
[6 Nm] – [0.6 Nm]
Max Moment Mz
50 lbs – 5 lbs
[6 Nm] – [0.6 Nm]
Material: High Strength, Aluminum Alloys,
Bronze
Weight: 8 oz [227 g]
Piston Diameter: .563 in [14 mm]
