AGR-4 Rotary Actuator
Features & Benefits
- Built-in adjustable hardstops on output flange stop against a dowel pin embedded in the body to prevent pinion breakage and give accurate specific rotation requirements.
- Two large bearings, one on either side of the pinion, provide for steady output flange with high loading capacity.
- Ultra high torque-to-weight ratio for faster cycle times.
- Compact body design to fit in tight space applications.
- Units are permanently lubricated for non-lube air operation, allowing for compliance with OSHA regulations.
- All rotary units have zero backlash at either end of rotation, keeping the output flange against the hardstop.
- Built-in adjustable flow controls allow for maximum cycle times and smooth deceleration.
- Proximity switches are available to monitor end of rotation.
- The AGR-4 unit is fully field repairable for cost savings and minimum down time.
PRODUCT SPECIFICATIONS
Design: Rack and Pinion with Flange Hard Stop
Rotation Range: 0º-180º (Adj. +/- 5º)
Payload: 15 lbs central to axis of rotation [6.8 Kg]
Torque:
@80 psi [5.5 BAR] 100 in/lb [11.3 Nm]
Bearing Load:
Dynamic 1390 lbs [6180 N]
Static 2150 lbs [9560 N]
Rotation Time: No load .40 second
Pressure Range:
Low/High 30-120 PSI [2-8 BAR]
Temperature Range:
Low/High -20°/180°F [-28°/80°C]
Backlash: Zero
Accuracy: .001 concentric and perpendicular to axis of
rotation
Material: High Strength,Hard Coated Aluminum Alloys, Steel
Weight: 5.0 lb [2.3 kg]
Piston Diameter: (2x) 1.25 in [32 mm]

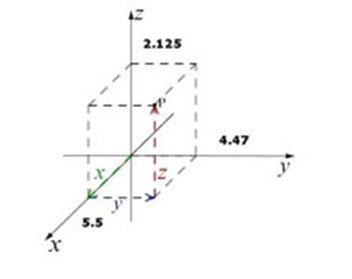

3-D Interactive Preview
